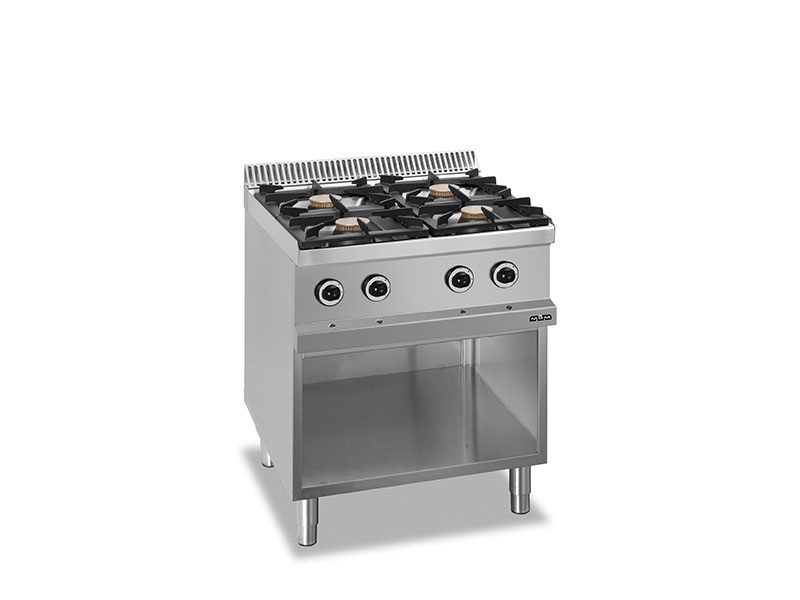

เตาแก๊ส GAS RANGE 4 BURNERS ON OPEN STAND MBM

เตาแก๊ส  GAS RANGE 4 BURNERS ON OPEN STAND MBM



Category: Gas ranges



Features

Reliability



Protected pilot flame.

Cast iron removable burnerswith self-stabilizing flame.

Performance



High power: Flex burnerof 5,5 kW or 7 kW.

60% certified efficiency.

Horizontal flame: uniform heatdistribution, also ideal for delicate cooking.

Ease of use



Maximum flexibility thanksto an adjustable power range, to satisfy every need.

New cast iron pan support (individual).

Rounded corners.

Watertight pressed worktop.

Characteristics of the product range



The watertigt pressed worktop is in 1mm AISI 304 stainless steel with drawn edges allows an effi cient burning and prevents liquid overfl owing, ensuring easier cleaning operations.

The removable burners in enameled cast iron and the brass burner caps of 5,5 kW or 7 kW each have horizontal self-stabilizing flame, to cook safely and for simpler maintenance.

Each burner has an adjustable power range, from a minimum of 1,5 kW to a maximum of 5,5 / 7 kW, to get maximum flexibility.

The pilot flam isprotected inside the main burner.

The placement of the burners allows use of pans up to 40 cm in diameter.

The single cast iron pan support are dishwasher-size.

Versions with oven (static GN 2/1, ventilated GN1/1):



Stainless steel double-wallcooking chamber with enameled bottom, stainless steel double-wall door withinsulating casing.

The gas oven has 6 kW (8 kW in maxi oven) burner with self-stabilizing fame; thermostatic temperature control with safety valve and thermocouple;piezo-electric burner ignition.

The electric oven has 2,6 kW stainless steel armoured heating elements placed on the bottom and on the top of the cooking chamber;thermostatic temperature control with separate bottom/top temperature control for maximum cooking fexibility.



Specifications Document Downloads

Dimension W700 x D700 x H850mm

Burners 4 x 5500W

Total gas power 22000W

Weight 62Kg

Warranty 3 years
